Bird Dog Woodworks marries the artistry of fine woodworking with the precision of CNC machining,
giving you the tools needed to produce quality boxes your customer will appreciate.
​
Our method of milling each form from a solid cube of material in a singular operation ensures we can stay within a tolerance level of 0.07mm, (0.003”)
on all six sides.
BDW uses solid core Birch Ply Die Board used
in the automotive industry as the base material.
Depending upon the volume of boxes needed,
you can pick from a variety of materials for your kit.
​
-

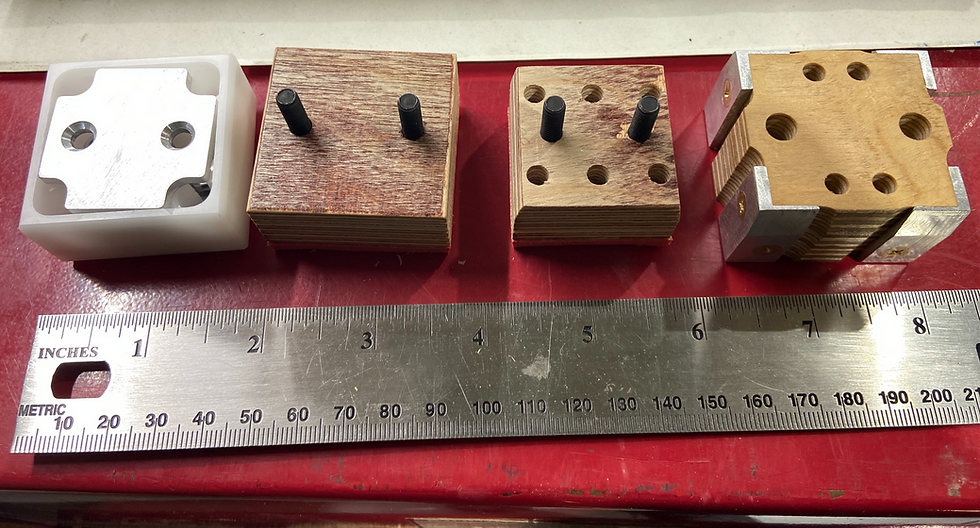

Wood Top Forms. (good for up to 150,000) or,
-
Delrin plastic Top Forms. (Good for 1,000,000)
-
Aluminum or Wood Mid form
-
Aluminum Corners on the Quad form.
-
Wood or Aluminum Presser Block
BDW produces forms & accessories for;
EMMECI
MC92/2004 APP, MEB
MC94 SB, DB
MC2012
MC2016, 2018, 2019
CRATHERN
MODELS B, H, D
BDW can make forms sets running on Emmeci & Crathern machines when large volume orders are needed.
Bird Dog Woodworks realizes you sometimes need a low cost “quick set” forms for small volume jobs.
We now offers 2 styles of forms to satisfy this requirement.
Both machined in the same manner to insure tight tolerances Bird Dog is known for.
​
​
Our STANDARD FORMS KIT: Highest quality, long runs, repeat work.
-
Forms are spray finished to reduce swelling of material.
-
Forms edges are milled with radiuses.
-
Aluminum corners are applied to the Quad Form.
-
Hardware included.
The ECONOMY FORMS KIT: All the quality and tight tolerances as
expected excluding the following.
-
No spray finish.
-
No radiuses except for the Mid form.
-
No aluminum corners - Quad.
-
Hardware included.
​​
The ECONOMY FORMS KIT is 19-23% cheaper than the standard forms kit.
